Hubei Xindongri Special Vehicle Co., Ltd.

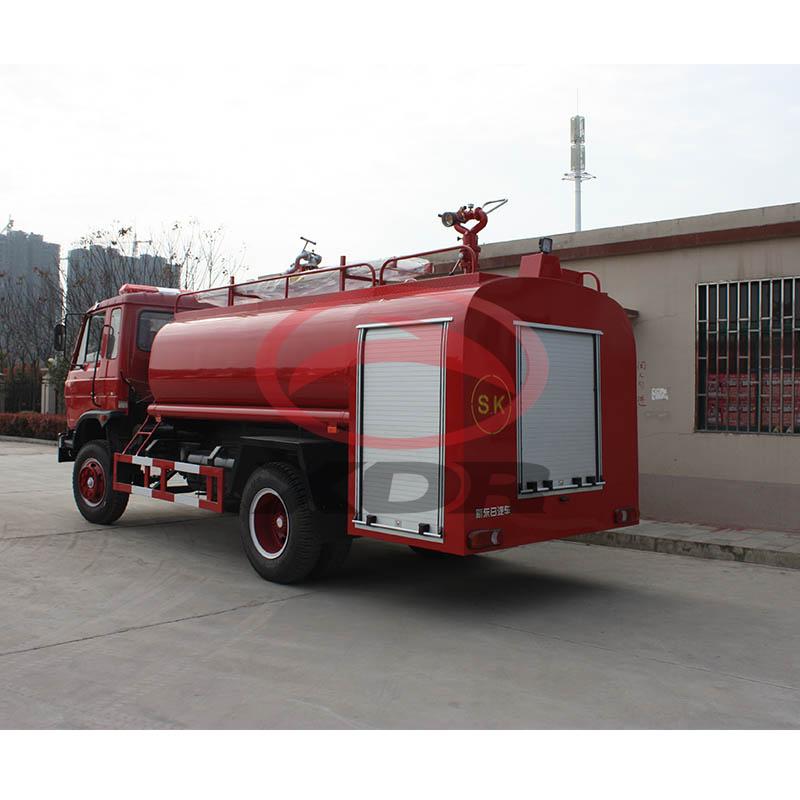

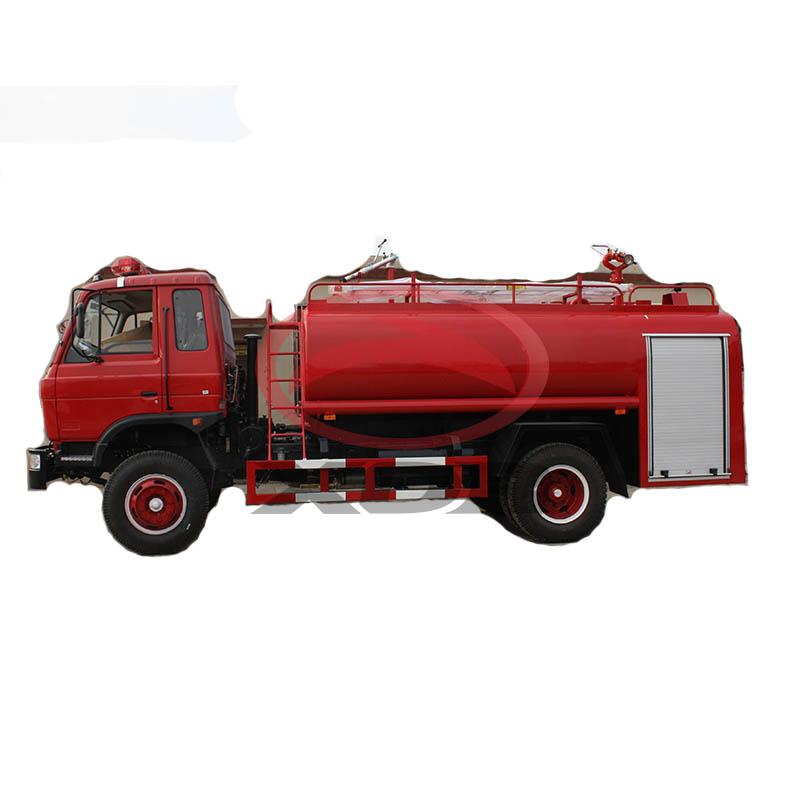

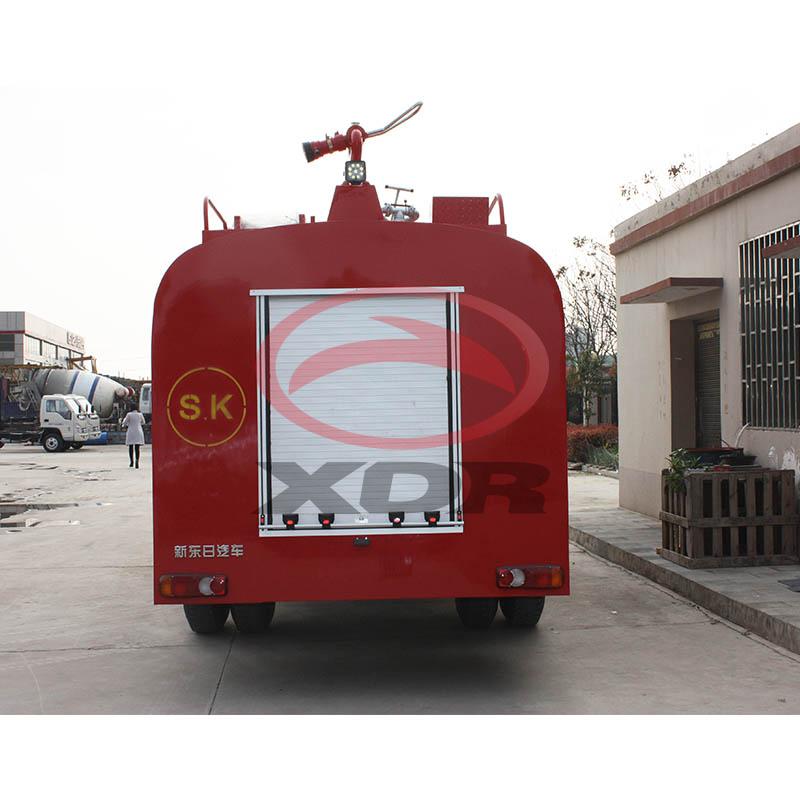

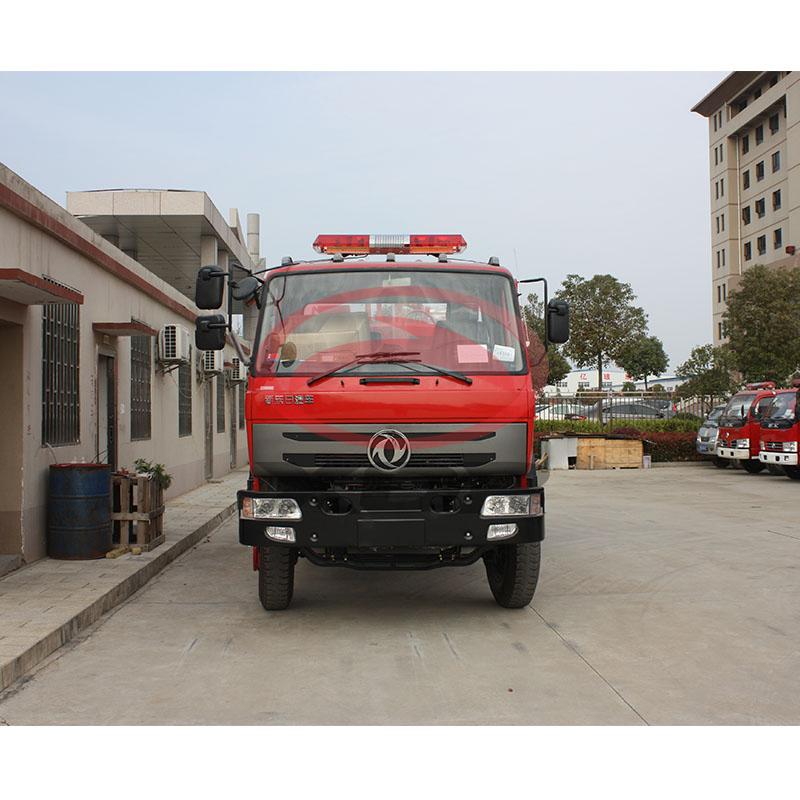

Front washing equipped fire sprinkler vehicle

  • Category:Water Bowser Fire Truck
  • Views:1577
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry
Front washing equipped fire sprinkler vehicle
General Vehicle Brand XDR
Chassis Brand  Dongfeng
Overall Dimension 7500x2480x3050mm
GVW/Curb Weight 12450/5655kg
Front/rear track      1810/1800mm
Approach/departure angle 20/12 (°)
Front/rear suspension 1032/1518
Leaf spring 9/11+8
Cab Cab Seat 3 seats
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3950mm
Tyre Specification 9.00-20
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model B170 33
Engine Brand  Dongfeng
Power 125kw/170hp
Displacement 5900cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Capacity                                                                                                                                            8000 liters/8Tons/8m3
Water flow                                                                                                                                                   20L/S
Pump PS20
Pressure 1.0Mpa
Fire distance 50m
water suction time ≤50s
water suction depth ≤7 m
washing wideth  14 m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
