Hubei Xindongri Special Vehicle Co., Ltd.

emergency and rescue fire fighting truck

  • Category:Emergency rescue vehicle
  • Views:1490
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
emergency and rescue fire fighting truck
General Vehicle Brand XDR
Chassis Brand  Dongfeng
Overall Dimension 8225x2495x318mm
GVW/Curb Weight 10855/10405kg
Front/rear track      1860/1860mm
Approach/departure angle 25/15 (°)
Front/rear suspension 1205/2190
Leaf spring 8/10+8
Cab Cab Seat 3 seats
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 4500
Tyre Specification 10.00-20
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model B190 33
Engine Brand  Dongfeng
Power 140kw/190hp
Displacement 5900cc
Emmission Standard Euro 3

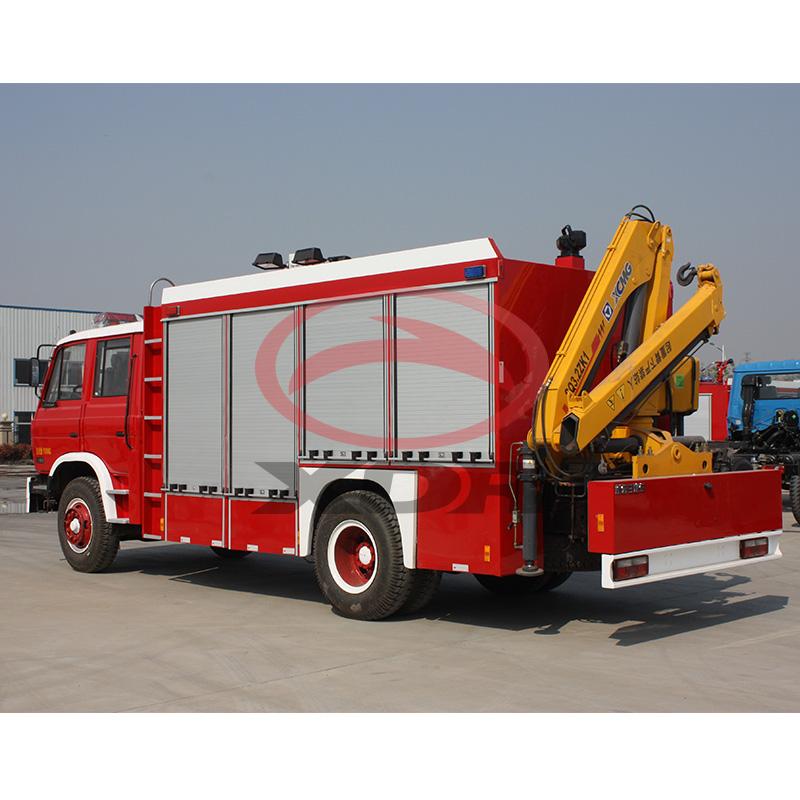

Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others hook capacity 3000-5000kg
winch capacity 3000kg
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
