1.General Description
Garbage Compactor truck is composed of hermitical garbage box, hydraulic system and operating system,
which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time.
Dirty liquid flows into wate sink, perfectly preventing re-pollution.
When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection. The operation system could be manual or electrical control.
2.Technical Data
12m³ JAC Waste Disposal Trucks | ||
General | Vehicle Brand | XDR |
Chassis Brand | JAC | |
Overall Dimension | 9000*2050*3000MM | |
GVW/Curb Weight | 16,000KG/11,100KG | |
Cab | Cab Seat | 3 |
Air Conditioner | YES | |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins | |
Power | 185HP(136KW) | |
Displacement | 6700ML | |
Emmission Standard | Euro3 or Euro5 | |
Chassis | Drive Type | 4*2, LHD/RHD |
Transmission | 6 Speed forward and 1 reverse | |
Wheelbase | 4500mm | |
Tyre Specification | 10.00-20 | |
Tyre No. | 6 Tyres | |
Max Speed | 110KM/H | |
Paint | Metallic Paint | |
Superstructure | Waste Box Capacity | 12m³ |
Waste Box Material | Carbon Steel | |
All standard accessories, Music alarm, Tool kit etc. | ||
Optional | Various rear loading mechanism, container lifting, hipper flip, skip loader etc |
3.Packing and transportation: Wax
(1) We spray wax to protect the truck before shipment.
(2) Waterproof cover and net can be provided for customer's optional choice.
(3) If only superstructure body which loaded in container,suitable strong steel support is provided.
(4)Standard container,Frame container,Open container,Roro ship are regular sea way shipment way. Road transportation is for road way delivery.
4.Payment terms
-
T/T
-
L/C
5.Delivery time
Generally 25days
6.Our advantages
1.Having 15 years experience in special trucks
2.Good quality :based on the standard of international request.
3.Competitive price:more reasonable than most suppliers
4.On-line delivery time:shipment as contract once we confirm
7.AFQ
1.Q:Trading or Factory? Location ?
A: Hubei Xindongri Special Purpose Vehicle Co., Ltd., is one of the most professional manufacturers for special purpose vehciles located in Suizhou City, Hubei Province, China. Our factory covers nearly 80,000 square meters, with own office builing, canteen, workshop, tesing square,etc.
2.Q:Visit ?
A:You will be welcomed here for factory inspection,you could take Plane to the capital city Wuhan Tianhe airport, and we will pick up you from the airport to our wuhan office to have a first visit and communication.Then we will go to Our suizhou headquarters together.
3.Q: Workshop?
A:We have experienced engineer and skillful workers here for your service.
4. Q: Delivery time & Stock & Payment ?
A:Please contact us for checking the instant Production arrangment and Stock condition here.Normally 25days.
Packing: waxed, by RORO ship, or Bulk ship
Payment: T/T be prefered, deposit first and balance paid before the delivery from factory.
8. Product View

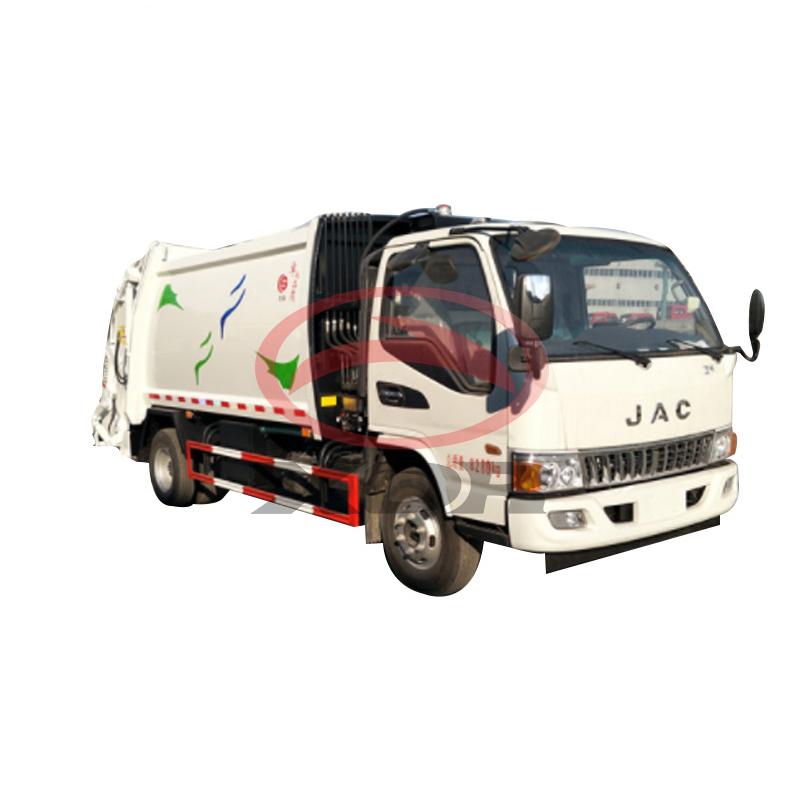

Front View of 12m³ JAC Waste Disposal Trucks
Lateral View of 12m³ JAC Waste Disposal Trucks
Right rear view of 12m³ JAC Waste Disposal Trucks
Left rear view of Front View of 12m³ JAC Waste Disposal Trucks
