5.5cbm Road Sweeper Truck

  • Category:Road Sweeper Truck
  • Views:2133
  • road sweeper
  • street sweeper
  • municipal vehicle
  • road sweeper
  • Product Manual:1. ISUZU Chassis 2. ISUZU engine, super powerful 3. High quality, reliable performance 4. Different colours and paintings provided 5. Do wax before shipping to avoid corrosion 6. Britain, Am
BASIC INFO Inquiry

1.General Description

The road sweeper vehicle is used for the cleaning of highway all over the city, vast industrial complex, runway fo airfield, etc. It's capable of sucking, gravel, sands, empty bottles, aluminum cans and other coarse things ont he middle and side of roads completely without dispersion of dust.

The vacuum sweeper superstructure is on the top of a truck chassis cab. Sweeper superstructure contains a vacuum suction device(including blower), sweeping system, water spray system and suction system with castor wheels.

All superstructures on the truck chassis is operated by using the swithches on the control panel in the driver's cabin and some parts of operation can be made by using the manual levers located on the side of vehicle under the hopper as needed.

2.Technical Data


ISUZU Road Sweeper Truck(5500L)
General Vehicle Brand XDR
Chassis Brand  ISUZU
Overall Dimension 6490*2000*2600MM
GVW/Curb Weight 7,300KG/5,700KG
Cab Cab Seat 2
Air Conditioner YES
Engine Fuel Type Diesel
Engine Brand  Brand
Power 120HP(88KW)
Displacement 2999ML
Emmission Standard Euro4
Chassis Drive Type 4*2, LHD(Left Hnad Drive)
Transmission ISUZU gear box
Wheelbase 3360mm
Tyre Specification 7.00-16
Tyre No. 6 Tyres
Max Speed 105KM/H
Paint Metallic Paint
Superstructure Water Tank Stainless Steel
Dustbin Capacity 4,000Litres
Dustbin Material Stainless Steel
Water Tank Capacity 1,500Litres
Sweeping Capacity 42,000m³/h
Sweeping Speed 3-15km/h
Max Sweeping Width 2800mm
Brooms 4PCS(2 sets at each side)
Auxiliary Engine JMC engine 77HP(57KW), ISUZU engine is available
Air Blower High quality Air Blower
All standard accessories, Warning lights, Music alarm, basic kit etc.
Optional Backup alarm, camera can be equipped


3.Packing and transportation: Wax

(1) We spray wax to protect the truck before shipment.

(2) Waterproof cover and net can be provided for customer's optional choice.

(3) If only superstructure body which loaded in container,suitable strong steel support is provided.

(4)Standard container,Frame container,Open container,Roro ship are regular sea way shipment way. Road transportation is for road way delivery.


4.Payment terms

  1. T/T

  2. L/C



5.Delivery time

 Generally 25days

6.Our advantages

 1.Having 15 years experience in special trucks

 2.Good quality :based on the standard of international request.

 3.Competitive price:more reasonable than most suppliers

 4.On-line delivery time:shipment as contract once we confirm

7.AFQ

1.Q:Trading or Factory? Location ?
A: Hubei Xindongri Special Purpose Vehicle Co., Ltd., is one of the most professional manufacturers for special purpose vehciles located in Suizhou City, Hubei Province, China. Our factory covers nearly 80,000 square meters, with own office builing, canteen, workshop, tesing square,etc.

2.Q:Visit ?
A:You will be welcomed here for factory inspection,you could take Plane to the capital city Wuhan Tianhe airport, and we will pick up you from the airport to our wuhan office to have a first visit  and communication.Then we will go to Our suizhou headquarters together.

3.Q: Workshop?
A:We have experienced engineer and skillful workers here for your service.

4. Q: Delivery time & Stock & Payment ?
A:Please contact us for checking the instant Production arrangment and Stock condition here.Normally 25days.
Packing: waxed, by RORO ship, or Bulk ship
Payment: T/T be prefered, deposit first and balance paid before the delivery from factory.


8. Product View

ISUZU 5.5方扫路车 1 (1).jpg

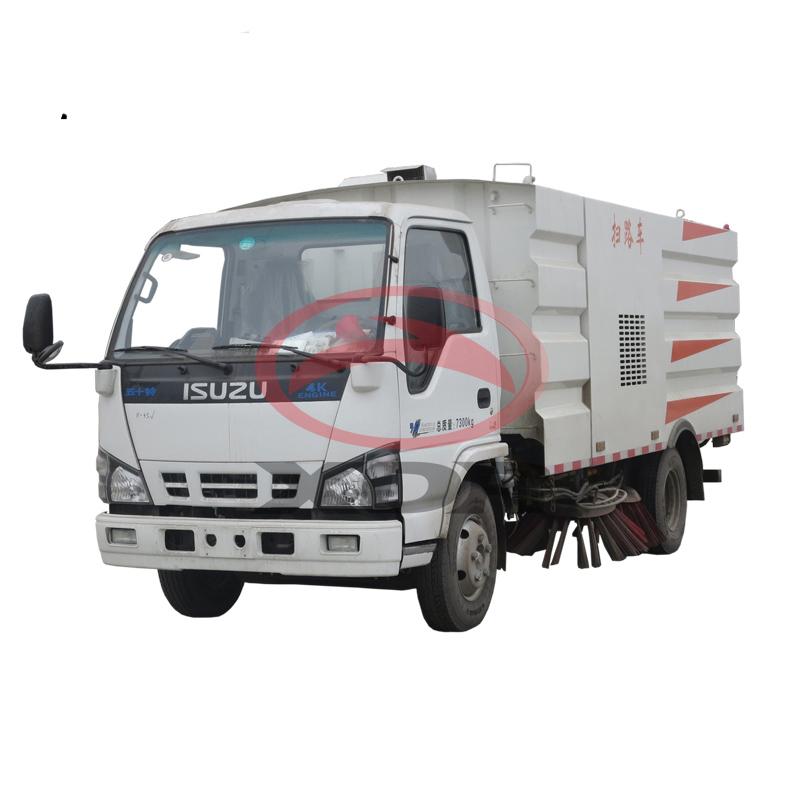

Side front View of ISUZU Road Sweeper Truck

ISUZU 5.5方扫路车 1 (2).jpg

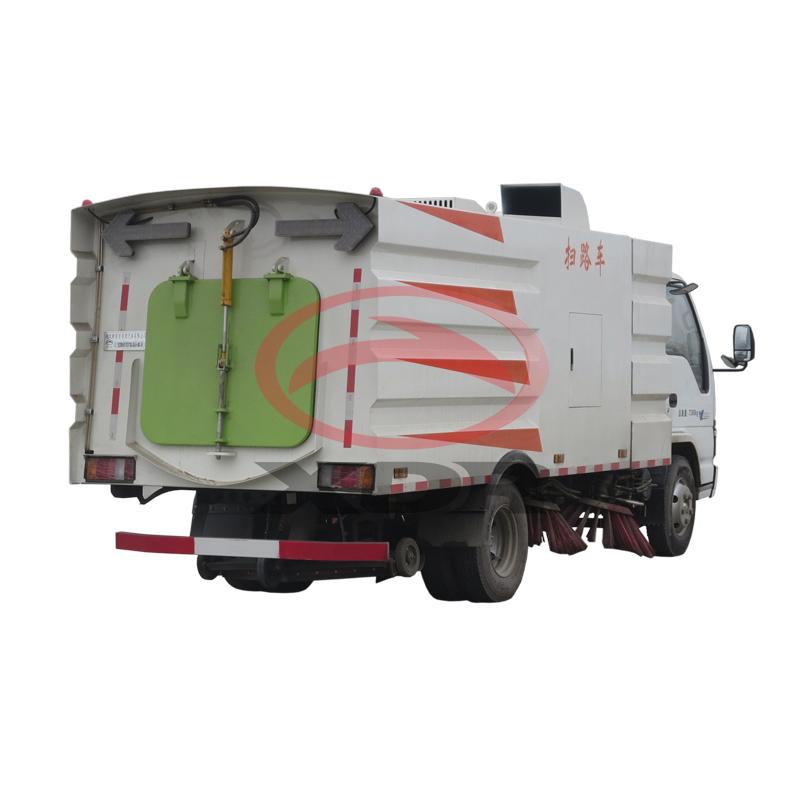

Lateral View of ISUZU Road Sweeper Truck

ISUZU 5.5方扫路车 1 (3).jpg

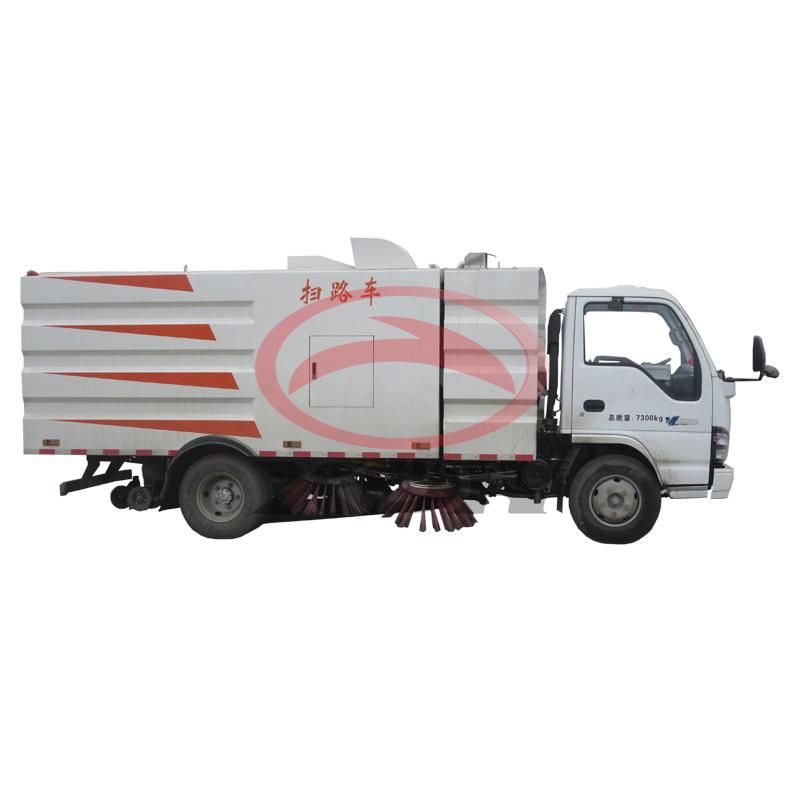

Side View of ISUZU Road Sweeper Truck 1

ISUZU 5.5方扫路车 1 (6).jpg

Side View of ISUZU Road Sweeper Truck 2
