Hubei Xindongri Special Vehicle Co., Ltd.

Fire fighting truck wtih water sprinkler

  • Category:Water Bowser Fire Truck
  • Views:685
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

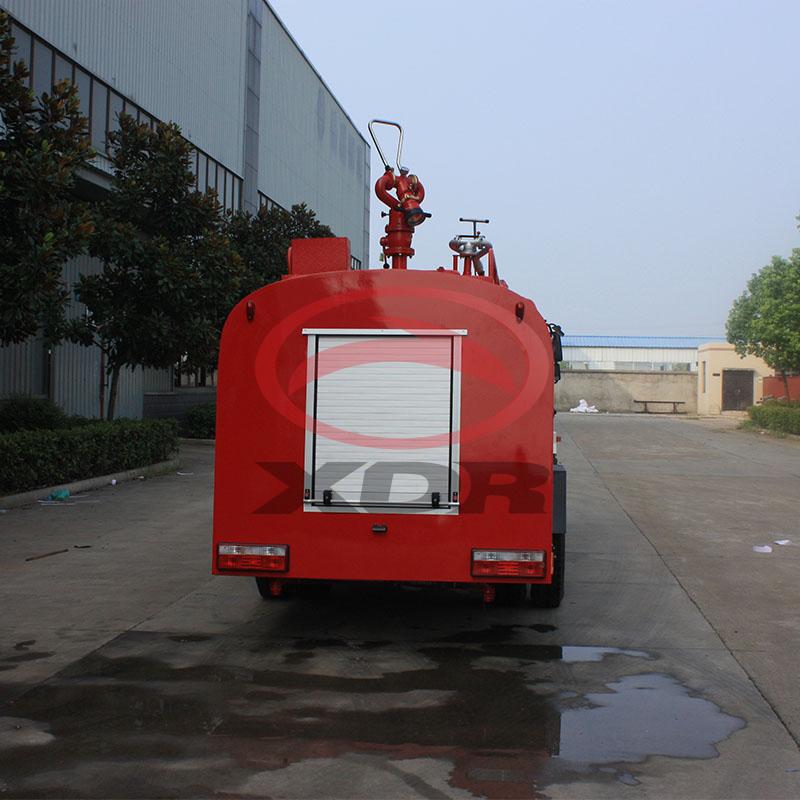

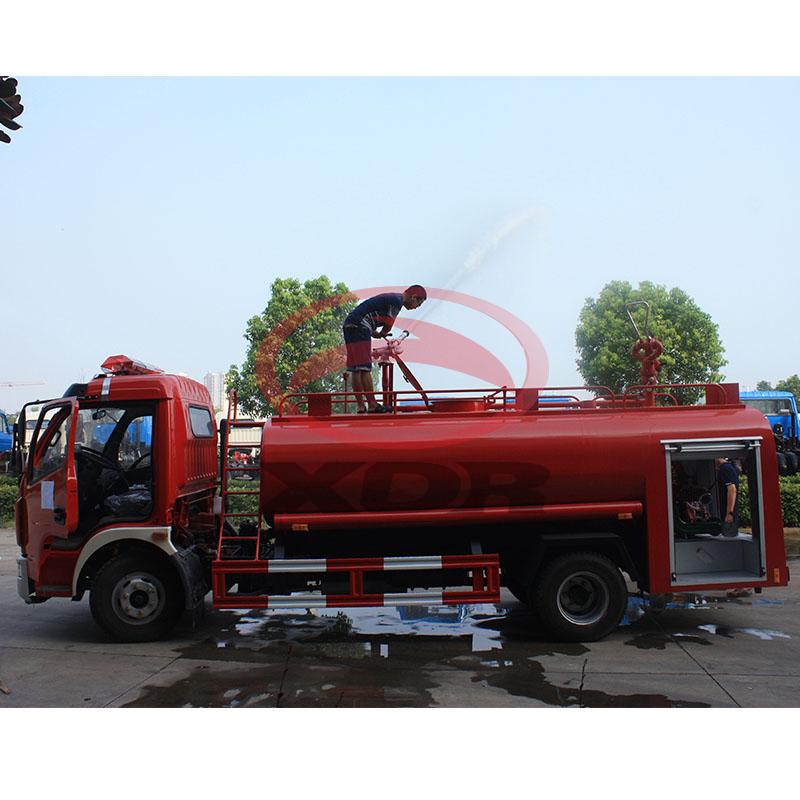

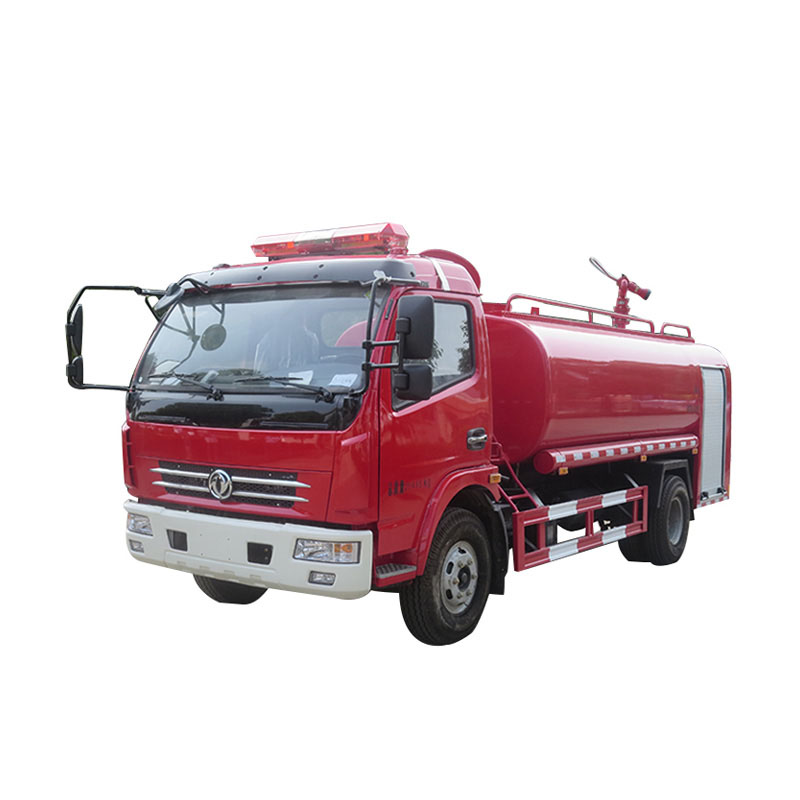

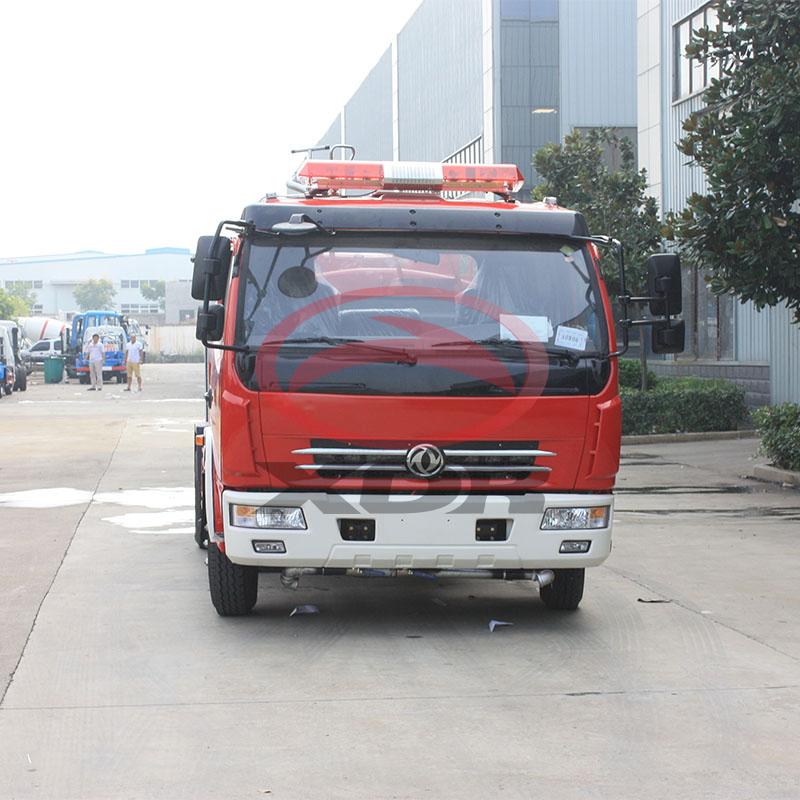

Fire fighting truck wtih water sprinkler
General Vehicle Brand XDR
Chassis Brand  Dongfeng
Overall Dimension 7480x2200x3400mm
GVW/Curb Weight 11000/7550kg
Front/rear track 1835/1640mm
Approach/departure angle 20/12 (°)
Front/rear suspension 1180/2400
Leaf spring 8/10+7
Cab Cab Seat 2 seats
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3800
Tyre Specification 7.50-16
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CY4102BZQ
Engine Brand  Dongfeng
Power 88kw/120hp
Displacement 3856cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Capacity                                                                                                                                                 7000 liters/7Tons/3m3
water flow                                                                                                                                                   30L/S
Pump PS30
Pressure 1.0Mpa
Fire distance 50m
water suction time ≤35s
water suction depth ≤7 m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
