Hubei Xindongri Special Vehicle Co., Ltd.

High and low pressure water pump fire truck

  • Category:Fire Truck
  • Views:1371
  • Product Manual:1.Common, middle and high level fire fighting truck products for different countries and regions; 2.Dongfeng, ISUZU, HOWO,JAC,JMC,FOTON chassis for option to meet different requests; 3.Different c
BASIC INFO Inquiry

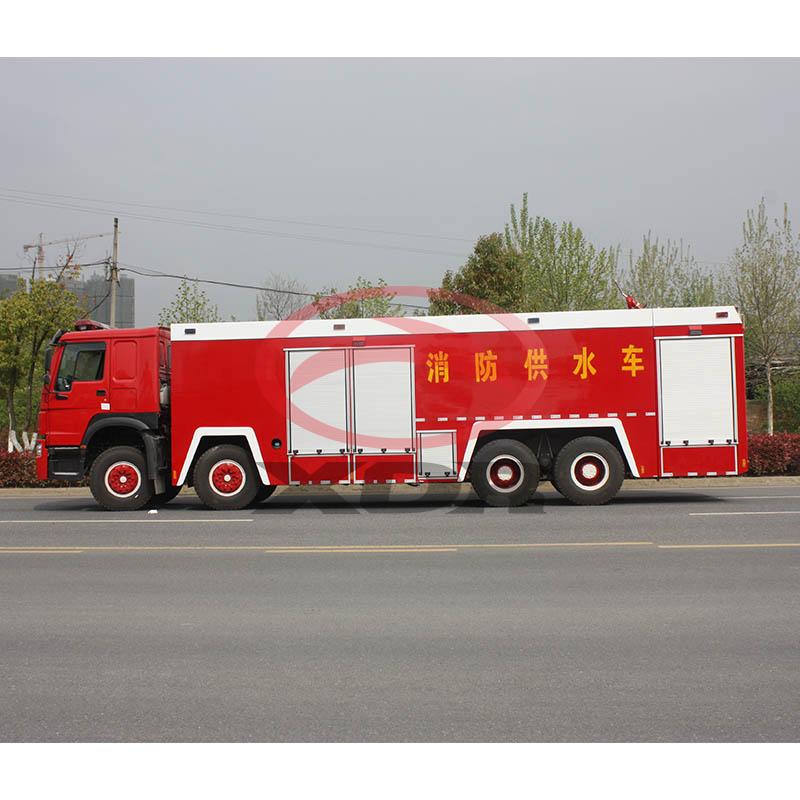

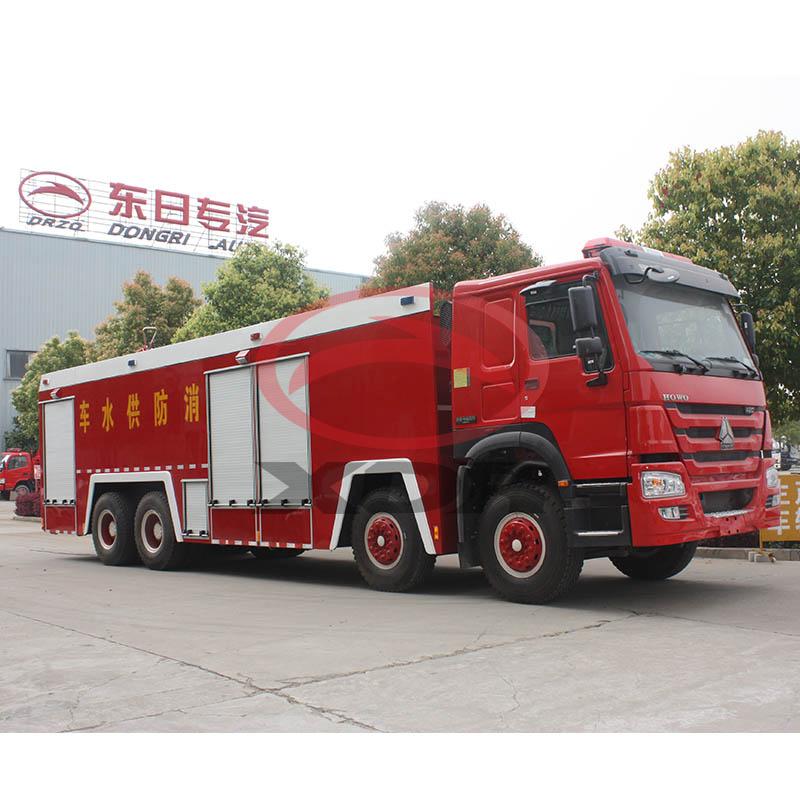

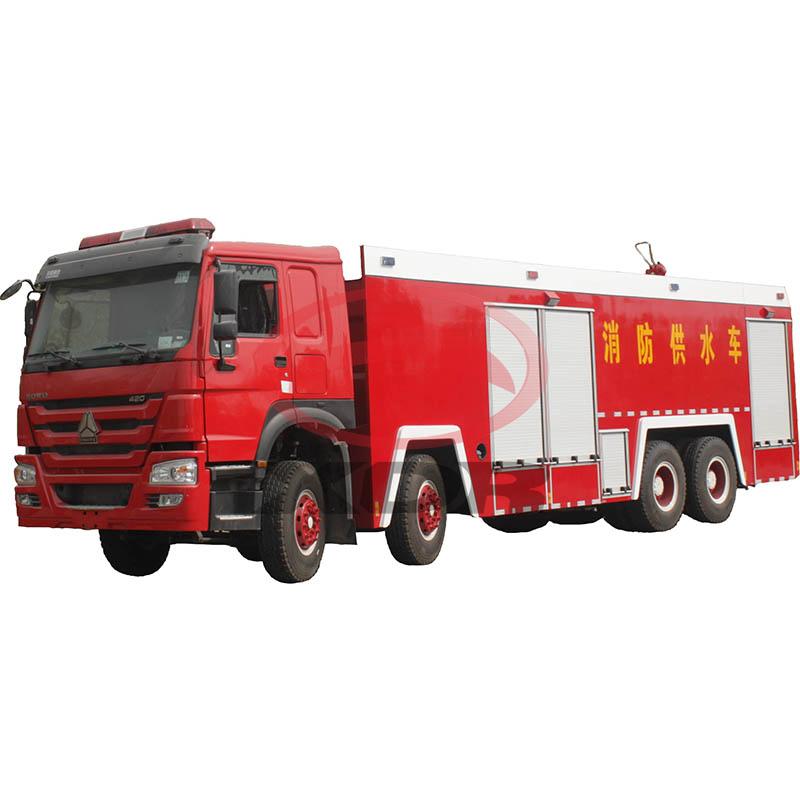

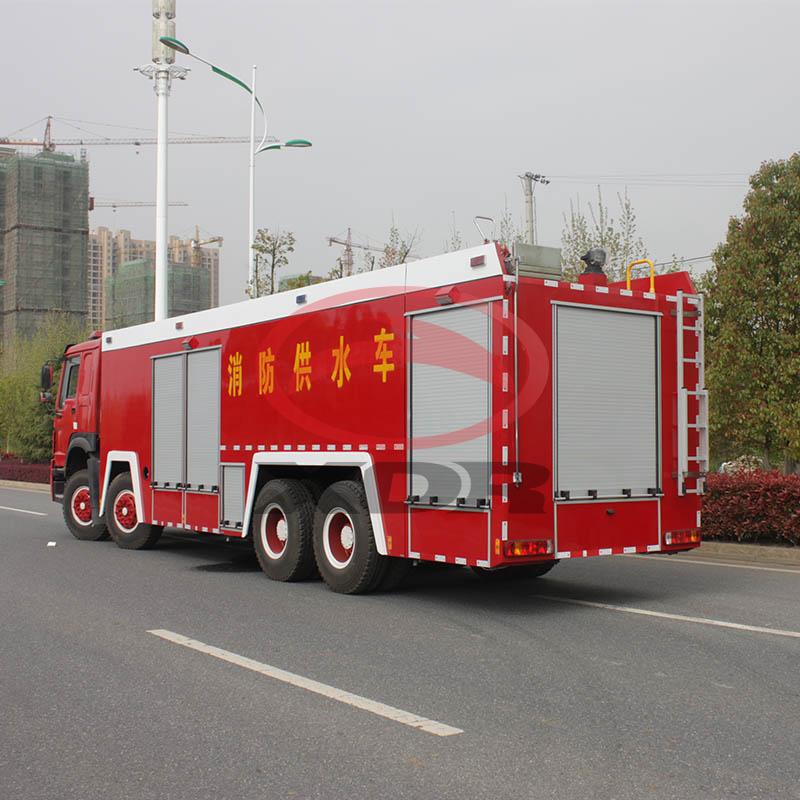

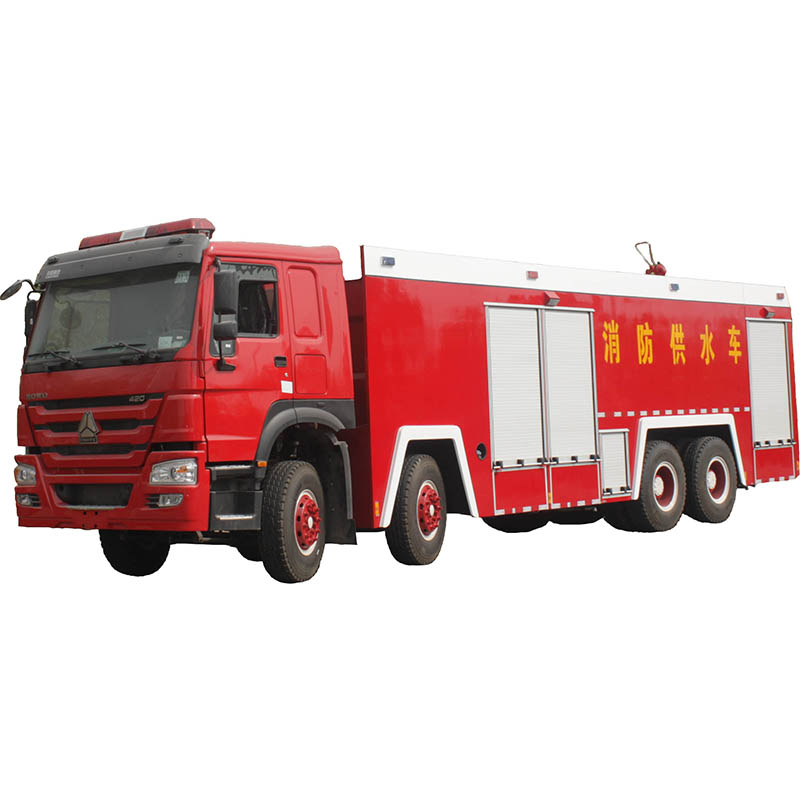

High and low pressure water pump fire truck
General Vehicle Brand XDR
Chassis Brand  HOWO
Overall Dimension 11900x2500x3635mm
GVW/Curb Weight 41000/17300kg
Front/rear track /mm
Approach/departure angle 14/13 (°)
Front/rear suspension 1500/2545
Leaf spring 8/10+6
Cab Cab Seat 5,6
Air Conditioner optional
Chassis Drive Type 8x4
Transmission Manual
Wheelbase 1800+4600+1350
Tyre Specification 12.00-20
Tyre No. 12+1
Max Speed 85km/h
Brake Air brake
Engine Fuel Type diesel
Engie Model D12.42-40
Engine Brand  HOWO
Power 309kw/420hp
Displacement 11596cc
Emmission Standard Euro 4
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top  mounted alarm and siren
Others Tank capacity                                                                                                                                                24000 liters/24Tons/24m3
Water flow                                                                                                                                                   70L/S
Pump PS80
Pressure 1.0Mpa
Fire distance 70m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional
