Euro 5 6 Wheels Aerial Lift Truck

  • Category:Aerial Platform Truck
  • Views:190
  • Product origin Suizhou,China
  • Delivery time within 25days after received the deposit
  • Supply capacity 1000sets per month
  • Product Manual:XDR 14m Euro 5 6 Wheels Aerial Lift Truck XDR Euro 5 6 Wheels Aerial Lift Truck is a hydraulic three folding arms type truck which mounted on second-class chassis.It consists of chassis, booms,outri
BASIC INFO Inquiry

1.Technical Data

Euro 5 6 Wheels Aerial Lift Truck

Vehicle Parameters

General

Vehicle Model

YZR5050JGK14J

Vehicle Brand

XDR

Chassis Brand

Jmc

Overall Dimension(mm)

6520×1960,2020×2960,3150

GVW/Curb Weight(kg)

5185/4860

Chassis Parameters

Cab

Cab Seat

2+3

Air Conditioner

Optional

Engine

Fuel Type

diesel

Engie Model

JX493ZLQ5

Engine Brand

JMC

Power

115hp

Displacement(cc)

2771

Emmission Standard

Euro5

Chassis

Drive Type

4*2

Transmission

5 speed, Manual

Wheelbase(mm)

3360

Tyre Specification

7.00R16

Tyre No.(pcs)

6+1

Max Speed(km/h)

100

Paint

Yellow

Aerial platform structure parameters

working height(m)

14

Maximum working radius(m)

6.6

Arm Material

carbon steel Q345

Arm  Thickness


Working height at Max.working radius(m)

8.4

Working radius at Max.working height(m)

3

Outrigger distance(mm)

3560*3250

Platform average rise speed(m/s)

≤0.4

Platform average fall speed(m/s)

≤0.4

Rotation speed (1r/min)

1

Arm structure type

Three section

Outrigger stretch time (s)

40

Rotation

360°continuous rotary

Outrigger

H type,independently

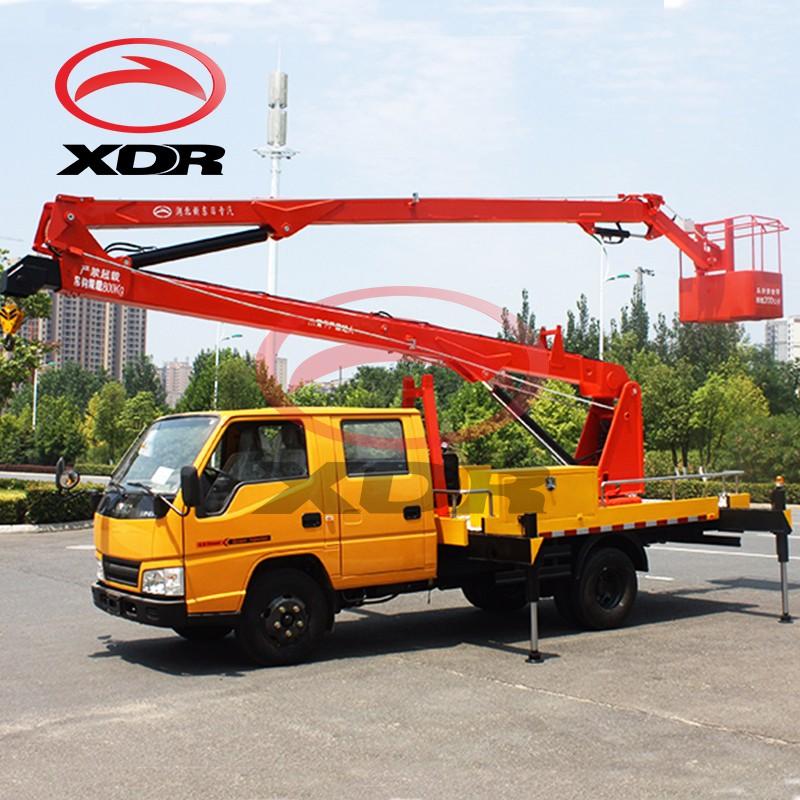

JMC 3360 14m 2.jpg

2.Basic function and safety equipment

1.Interlock device for up and down

Basically used for the working arm and outrigger safety operation,prevent  misoperation

2.Level indication device

Check out the balance of whole truck

3.emergent electric pump

when there is something wrong with the engine and main pump,it can send  operator to       ground When engine and main pump (optional)

4.Night safety warning device
